Please review this excellent
presentation by N6BV that explains clearly the benefits of maintaining
full control over your stack all the times.
micro STACK MAX™
is a microcontroller based push-button controller for
micro STACK SWITCH™ or phasing boxes from other
manufacturers
.
micro STACK MAX™ features
push-button operation or (remote) computer control and special user configurable operating modes,
phasing and stacking:
T/R - automatically switch antenna configurations
between transmitting and receiving
BOP - put the stack out of phase for high
angle paths
AUX (SO2R) - exclude one antenna from the
stack and put it to the second radio
micro STACK MAX provides hot switch protection
and its unique computer control (optional) it enables you to switch antennas in your stack with a single
mouse click or by pressing a hot key on the computer keyboard.

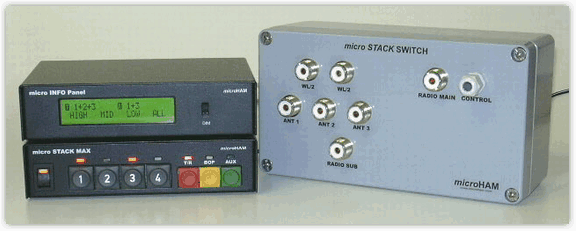

micro STACK MAX is
available alone or in
microPACKS with microSTACK SWITCH
and/or microINFO Panel in a configuration
that best meets your personal needs and operating style.
Package includes: micro STACK MAX™,
DC plug, microHAM Device Configurator� software on CD and PCCOM1 cable.
Control cable is not included. See Application
Note 29 for cable requirements.
| $369 |
| microSTACK MAX |
