microHAM: CW Keyer ...

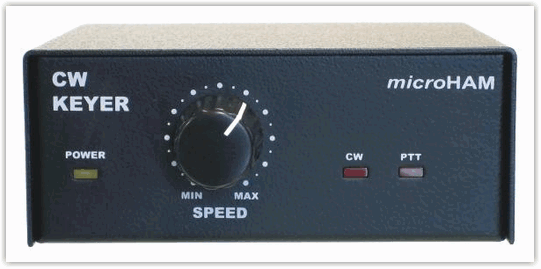

CW KEYERï¿½ is a powerful USB CW interface/memory keyer based on the K1EL WinKey chip and microKEYERï¿½ technology. CW Keyerï¿½ provides the unmatched CW features of the original microKEYER and a USB radio control interface in a small, readily portable package for those with no need for the audio handling capabilities of microKEYER.
CW KEYERï¿½ uses a single USB port can be interfaced with many logging programs for both radio control and CW transmission. CW KEYERï¿½ supports a PS/2 keyboard for CW generation or control of the memory keyer functions (including contest serial number generation) or a PS/2 keypad for control of the memory functions. The keyboard and keypad function whether or not CW KEYERï¿½ is connected to a computer.

Package contains: CW KEYERï¿½, manual and control software on CDROM, USB A-B cable 2m (6.5ft) long, and radio (CAT) cable.

CW KEYER: $165

OPTIONS

PS/2 Numeric Keypad $25

Features and functions:

CW KEYER block diagram

ï¿½	No serial or parallel port needed, just one USB port
ï¿½	Complete electrical isolation between computer and radio - optical isolation of ALL signals: Radio Control, CW, PTT
ï¿½	Compatible with most Windows based logging and control software - special microHAM "USB Device Router " program creates virtual COM ports to interface with logging software - customizable presets allow instantly changing CW KEYER to work with different loggers.
ï¿½	Macintosh OS-X Support - compatible with and supports MacLoggerDX by Dog Park Software
ï¿½	Integrated computer control port for all radios: CI-V, FIF-232, IF-232, RS-232 - supports Icom, Kenwood, Ten Tec, Yaesu and other radios - no separate level converter required
ï¿½	Integrated K1EL WinKeyï¿½ chip with extended capabilities - front panel speed knob - nine (9) user programmable memories - programmable contest serial number with optional RST - PS/2 keyboard support for direct CW generation - PS/2 keyboard/keypad support for instant CW message playback - PS/2 keyboard/keypad CW work without computer connection - automatic "early" PTT - selectable side tone - all parameters are stored in flash memory and reloaded on power up
ï¿½	Strong RFI immunity - integrated chokes and filters for best RFI immunity - advanced shielding and circuit design for RFI product supression
ï¿½	Quick change connectors - USB, Radio CAT - 1/8" - Paddle - 1/4", PS/2 - MiniDIN6, CW - RCA, PTT - RCA
ï¿½	Front panel LEDs for easy visual feedback of CW and PTT
ï¿½	Metal/Aluminum case, powder coated and silk screened
ï¿½	Free, time unlimited firmware/software upgrades via internet
