microHAM: microSix Switch

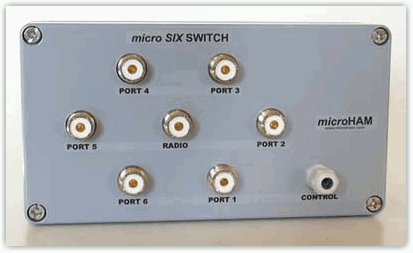

microSIX SWITCH is a high performance, rugged, high power, remotely controlled antenna switch capable of selecting one of six (6) antennas to one (1) feedline. It can be installed inside the shack or outside on the tower.

Available with UHF SO-239 connectors or N connectors.

Package includes: micro SIX SWITCH, double C-bolt for tower mounting and manual on CD. Control cable is not included. See Application Note 29 for cable requirements.

Six Switch UHF connectors	$449
Six Switch N connectors (Special Order)	$529

Features:

•	six (6) antenna ports - 1 to 60 MHz.
•	heavy aluminum case 4mm (158 mils) thick, IP 66 provides high level weather protection and RF proof capabilities
•	SO239 UHF or N teflon™ / gold pin connectors used
•	10kV surge strength, 16 Amp sealed relays
•	stub compensated microstrip PCB architecture assures lowest SWR and insertion loss from 1.8 to 60 MHz
•	built-in surge protection
•	compatible with all 12V source driver band decoders
•	connects directly to Station Master™
•	top cover screws protected against loss (very useful at tower)
•	easy wall or tower assembling thanks to special galvanized heavy double C-bolt, which allows using various diameter of the tower tube
•	unselected antenna ports are grounded
•	without power all antenna ports are grounded
•	each device is individually trimmed and tuned for best performance
