Radio Cables:

microHAM does not offer OEM cable sets for the micro2R.  However, the cables are easily constructed with readily available connectors and pre-built cable assemblies.

In general, cables can be assembled from a 12 foot (two meter) stereo audio cable (two coaxial cables) and a 6 foot (one meter) stereo audio cable (two wires and shield). The twin coaxial cable is cut in half to provide two pieces - one half is used for CW and PTT IN (Amp PTT), the other half for Mic audio and PTT.  The shielded two wire cable is used for headphone audio.

For transceivers with an RJ-45 mic jack, one of the dual coaxial cables is replaced by a six foot length of CAT5 cable.  Ideally, the RJ-45 connector is wired so the mic and PTT signals are on separate twisted pairs.

Below are examples of the cables for some of the most common transceivers:

Elecraft:

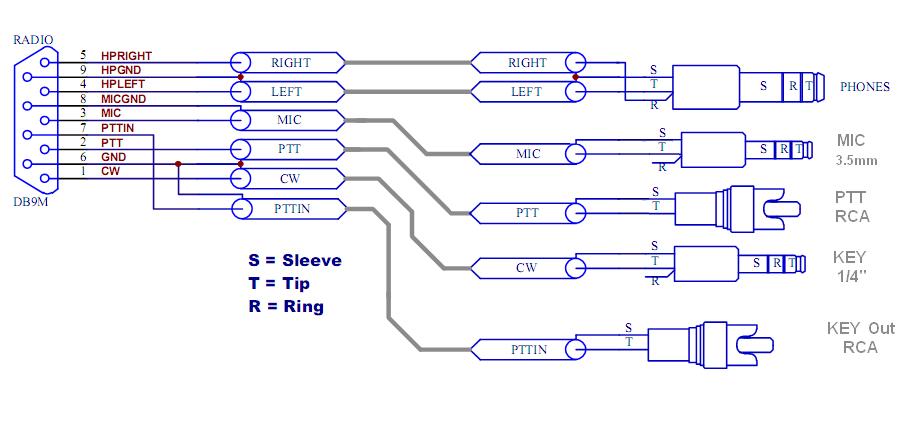

Elecraft K3 - rear mic

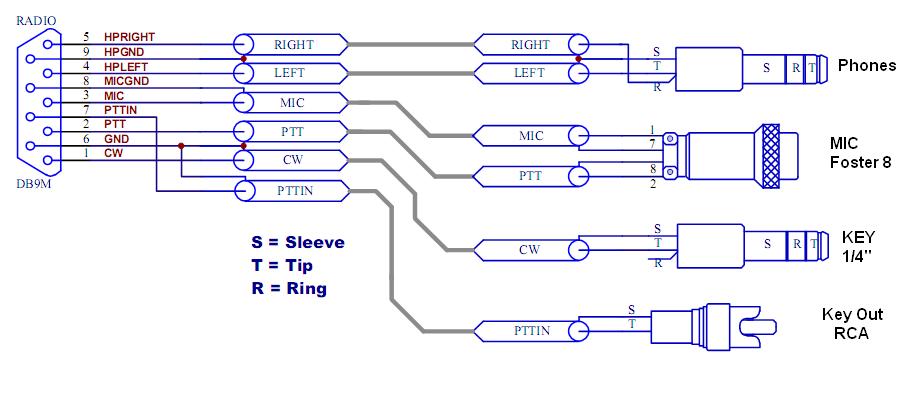

Elecraft K2 or K3

Icom:

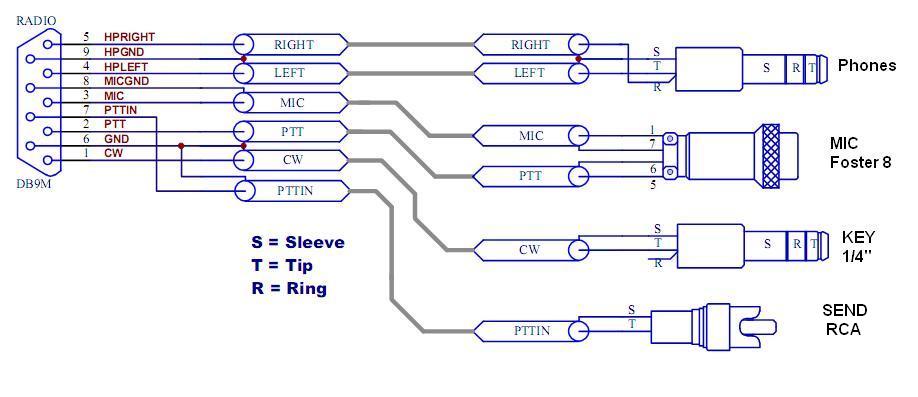

Most Icom transceivers

Icom transceivers with RJ-45 mics

Kenwood:
Most Kenwood Transceivers

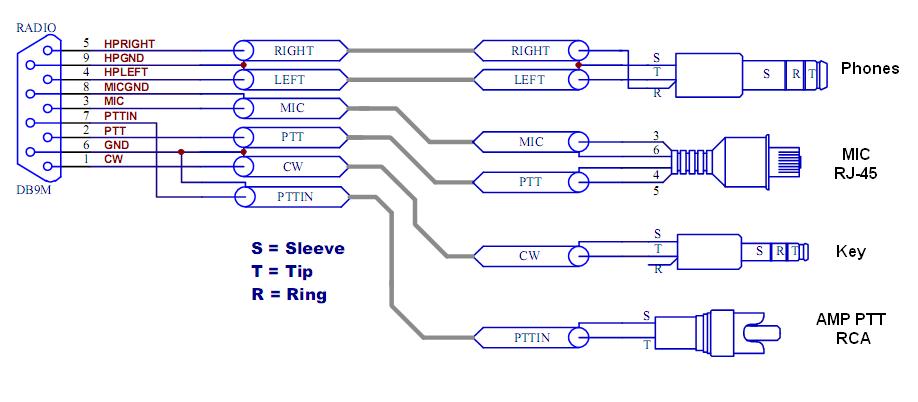

Kenwood TS-480

Ten-Tec:
Orion II, Omni VII

Orion, Omni V,VI,VI+

Yaesu:

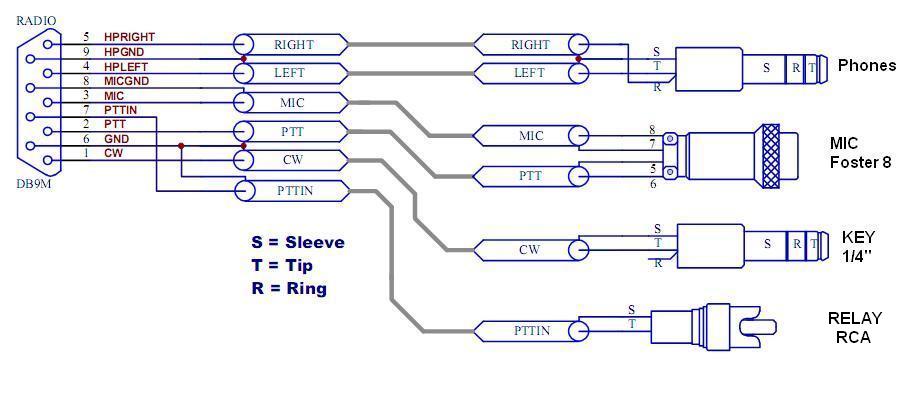

Yaesu with Foster (round) mic jack

Yaesu with RJ-45 mic jack
